Architecture reference

The one-page version of the rules the tutorial builds up. If you're evaluating the template or enforcing conventions in review, this is the page to keep open.

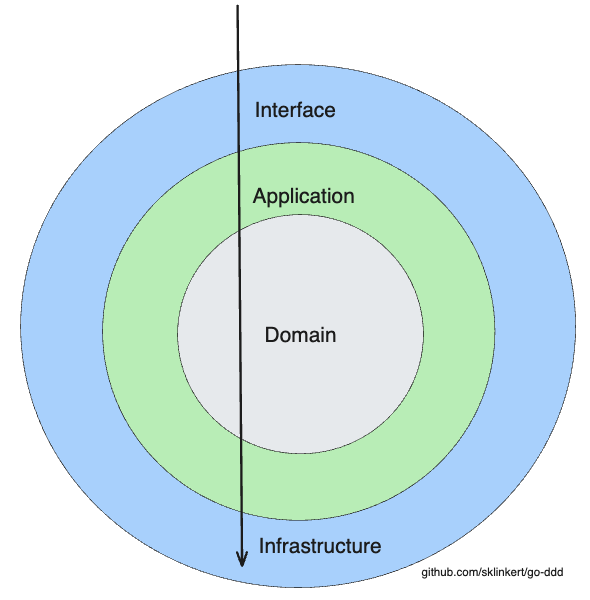

The onion

Dependencies point inward only. The domain sits at the center and imports nothing from the layers around it.

internal/
├── domain/           # entities, value objects, events, repository INTERFACES
├── application/      # commands, queries, services (orchestration)
├── infrastructure/   # Postgres/sqlc repositories, outbox relay, config
└── interface/        # REST controllers, DTOs

Layer	May import	Must never import
domain	stdlib, google/uuid	application, infrastructure, interface, any framework or driver
application	domain	infrastructure, interface, Echo, pgx
infrastructure	domain, application	interface
interface	application, domain (types only)	infrastructure

The wiring point where everything meets is cmd/marketplace/main.go: it constructs concrete repositories, injects them into services, and hands services to controllers. No other file knows all the layers.

Layer responsibilities

Domain (tutorial 1–4) — the model. Entities enforce their invariants via constructors and validate(); value objects like Money are unconstructible in invalid states; aggregates reference each other by Id only; repository interfaces declare what persistence the model needs. Errors are sentinels (ErrValidation, ErrProductNotFound) that outer layers translate.

Application (tutorial 6, 8) — the use cases. Commands and queries as explicit types; services orchestrate (load aggregates, invoke domain behavior, persist) but never decide business rules; the withIdempotency decorator makes every command retry-safe. Results are output shapes, not entities.

Infrastructure (tutorial 5, 7) — the details. sqlc-generated, type-safe SQL behind the domain's repository interfaces; row-to-entity mapping routes through validating constructors; the aggregate write and its outbox events share one transaction; the relay polls and publishes with at-least-once semantics.

Interface — the edge. Echo controllers parse DTOs, call services, and map sentinel errors to status codes in errors.go: ErrProductNotFound → 404, ErrValidation → 400, ErrRequestInFlight → 409, ErrIdempotencyKeyReuse → 422. DTOs use explicit primitives (price_minor_units, not price) so the wire format can never be ambiguous.

The request flows

Write path:

sequenceDiagram
    participant C as Client
    participant R as REST Controller
    participant S as ProductService
    participant D as Domain
    participant P as Postgres

    C->>R: POST /api/v1/products
    R->>S: CreateProductCommand
    S->>P: Reserve idempotency key (atomic INSERT)
    S->>D: NewMoney, NewProduct, NewValidatedProduct
    D-->>S: ValidatedProduct + recorded events
    S->>P: One tx: product row + outbox events
    S->>P: Store cached response
    S-->>R: CommandResult
    R-->>C: 201 Created

Read path: controller → query → service → repository → result mapping. No entity construction ceremony, no idempotency, no events — reads have no business rules.

Event path: outbox relay polls outbox_events WHERE published_at IS NULL (partial index), hands each to a Publisher, marks published. At-least-once; consumers deduplicate on the UUIDv7 event Id.

Conventions that keep the codebase consistent

• Constructors everywhere. NewX for every entity and value object; struct literals for domain types are a review flag outside the entities package and its tests.
• ValidatedX types at trust boundaries. Repository write methods accept only validated types — the compiler enforces the validation contract.
• Sentinel errors, wrapped with %w. Match with errors.Is; never branch on error strings.
• Id, not ID. House style, enforced deliberately (the corresponding staticcheck rules are disabled in .golangci.yml on purpose).
• Soft deletes. deleted_at columns; every read query filters deleted_at IS NULL. Deleted data is invisible, not gone.
• Migrations are append-only. Schema evolves through numbered migrations/ pairs (up/down); sqlc regenerates the query layer from sql/queries/ via make sqlc.
• Defaults live where the invariant lives. Business defaults belong in domain code, not split between code and DB where they can drift.

Tooling map

Concern	Tool	Where
HTTP	Echo v4	internal/interface/api/rest/
DB access	pgx/v5 + sqlc	internal/infrastructure/db/
Migrations	golang-migrate	migrations/, migrate.go
Logging	slog	throughout
Tests	testify + testcontainers	*_test.go, internal/testhelpers/
Lint	golangci-lint v2	.golangci.yml
API contract	OpenAPI 3	api/openapi.yaml
Ops probes	/healthz, /readyz	internal/interface/api/rest/health_controller.go

For the reasoning behind each of these decisions, the tutorial walks them in order; for the trade-offs, the FAQ.
